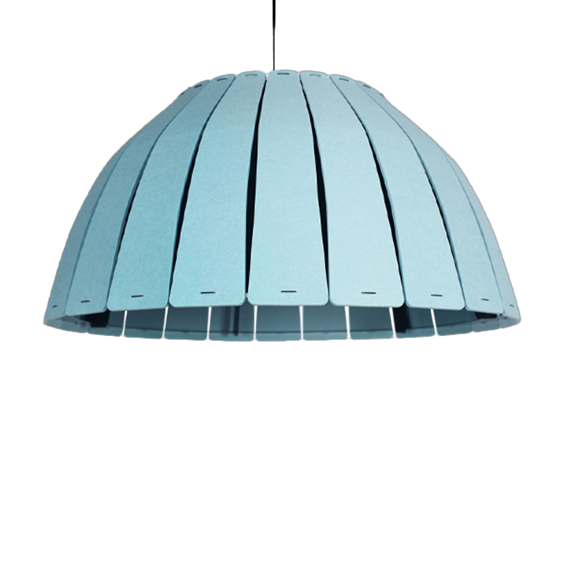

Filtrum
Pendant Acoustic Solutions Luminary
Optics
Opal Diffuser
Luminous Flux
474 lm / 990 lm / 2250 lm / 2856 lm
Consumption Power
6 W / 9 W / 18 W / 24 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 20
IK 02
70K
Product Features
- Luminaire Group Acoustic Solutions
- Mounting Type Pendant
- Housing Acoustic Panel
- Optics Opal Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 20
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 474 lm / 990 lm / 2250 lm / 2856 lm
- Consumption Power 6 W / 9 W / 18 W / 24 W
- Luminaire Efficiency 125 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

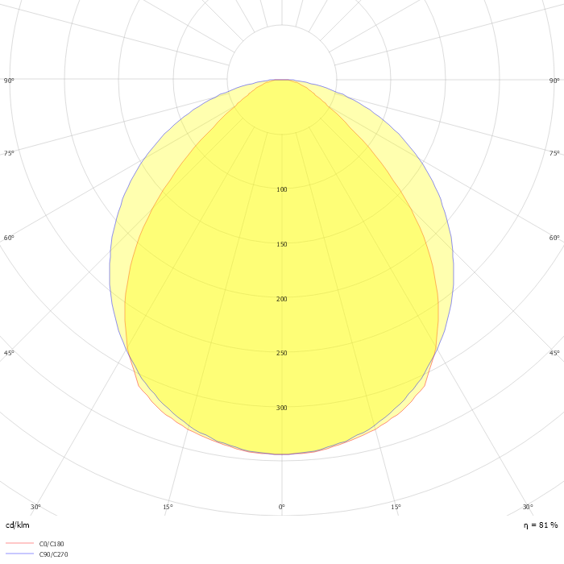

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| FİL 635 335 006A 8040 10 99 OP 20 00 | 6 | 474 | 4000 | 120° Opal Diffuser | Ø635x335 |
|
| FİL 635 335 009A 8040 10 99 OP 20 01 | 9 | 990 | 4000 | 120° Opal Diffuser | Ø635x335 |
|
| FİL 635 335 018A 8040 10 99 OP 20 02 | 18 | 2250 | 4000 | 120° Opal Diffuser | Ø635x335 |
|
| FİL 635 335 024A 8040 10 99 OP 20 03 | 24 | 2856 | 4000 | 120° Opal Diffuser | Ø635x335 |
|
Download
