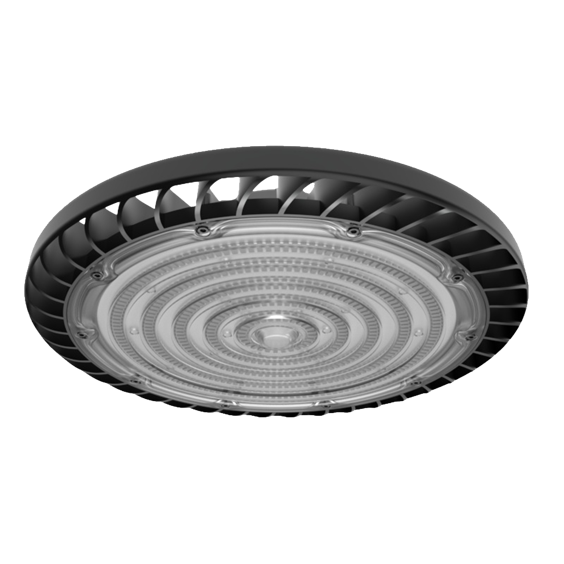

Around
Surface Mounted Industrial Luminary
Optics
60º / 90° Pc Lens
Luminous Flux
16174 lm / 21868 lm / 24124 lm / 27010 lm
Consumption Power
100 W / 140 W / 160 W / 180 W
Light Color Temperature (CCT)
2700K / 3000K / 4000K / 6500K
220V 240V
IP 65
IK 08
100K
Colour Options
RAL 9005
Product Features
- Luminaire Group Industrial
- Mounting Type Surface Mounted
- Luminary Color RAL 9005
- Housing Electrostatic Powder Coated Aluminum Extrusion Body
- Optics 60º / 90° Pc Lens
- Light Source LED
- Electrical Protection Class CLASS II
- IP 65
- IK 08
- Operating Temperature -20°C / +40°C
- Luminous Flux 16174 lm / 21868 lm / 24124 lm / 27010 lm
- Consumption Power 100 W / 140 W / 160 W / 180 W
- Luminaire Efficiency 157 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K / 3000K / 4000K / 6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 4kV
- THD (AKIM) >%20
- LED life >100.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit / Industrial

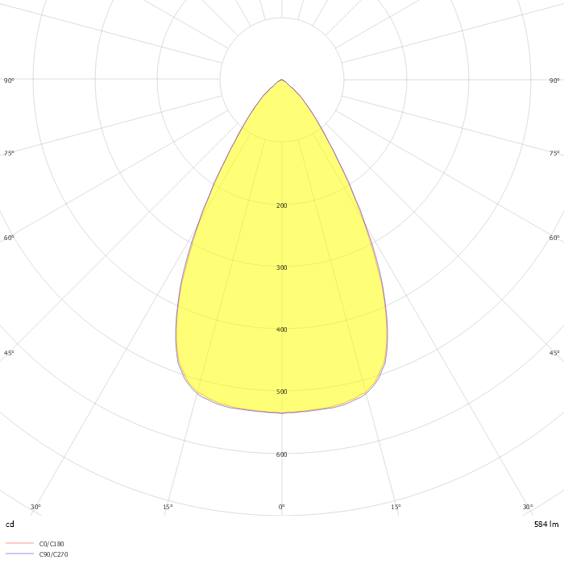

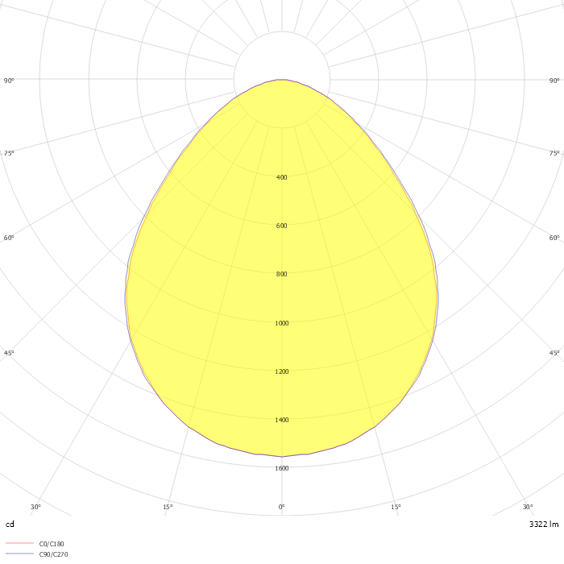

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| ARD 032 010 100S 8040 10 60 LN 65 00 | 100 | 16174 | 4000 | 60° Pc Lens | Ø320x108 |
|
| ARD 032 010 100S 8040 10 90 LN 65 00 | 100 | 16174 | 4000 | 60° Pc Lens | Ø320x108 |
|
| ARD 032 010 140S 8040 10 60 LN 65 00 | 140 | 21868 | 4000 | 60° Pc Lens | Ø320x108 |
|
| ARD 032 010 140S 8040 10 90 LN 65 00 | 140 | 21868 | 4000 | 90° Pc Lens | Ø320x108 |
|
| ARD 032 010 160S 8040 10 60 LN 65 00 | 160 | 24124 | 4000 | 60° Pc Lens | Ø320x108 |
|
| ARD 032 010 160S 8040 10 90 LN 65 00 | 160 | 24124 | 4000 | 90° Pc Lens | Ø320x108 |
|
| ARD 032 010 180S 8040 10 60 LN 65 00 | 180 | 27010 | 4000 | 60° Pc Lens | Ø320x108 |
|
| ARD 032 010 180S 8040 10 90 LN 65 00 | 180 | 27010 | 4000 | 90° Pc Lens | Ø320x108 |
|
Download
