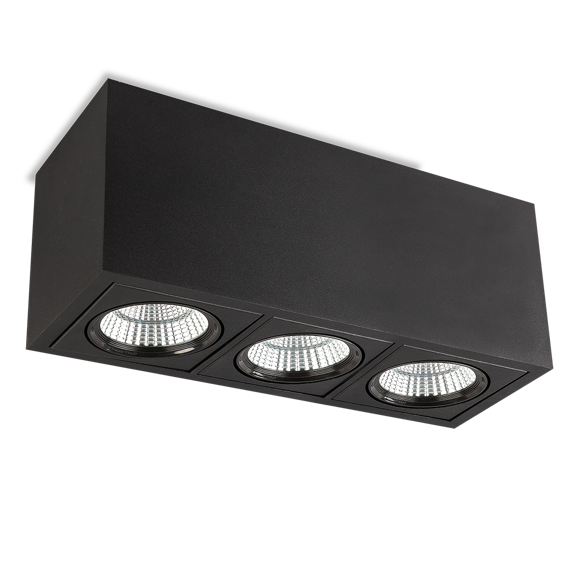

Parent Sıvaüstü Üçlü 1080X1080

Parent III Surface Mounted

Surface Mounted Luminary

Optics
15° 30° 40° Reflector

Luminous Flux
10140 lm / 13500 lm

Consumption Power
78 W / 99 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak

Indoor

Tse

Enec

220V 240V IP 20 IK 03 70K LED life

LED life

Colour Options

RAL 9005

RAL 9006

RAL 9010

Product Features

Luminaire Group Surface Mounted
Mounting Type Surface Mounted
Luminary Color RAL 9005 - RAL 9006 - RAL 9010
Housing DKP Sheet
Optics 15° 30° 40° Reflector
Light Source LED
Electrical Protection Class CLASS II
IP 20
IK 03
Operating Temperature -20°C / +40°C
Luminous Flux 10140 lm / 13500 lm
Consumption Power 78 W / 99 W
Luminaire Efficiency 130 lm/W
Color Rendering (CRI) >80
Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
Color Tolerance < 3 SDCM
Driver Type On/Off
Driver Brand Tridonic
LED Brand Samsung
Input Voltage / Frequency 220-240 V AC 50/60 Hz
Power Factor >0.9
Surge 1kV
THD (AKIM) >%20
LED life 70.000 hours
Option On-Off / Dali / 1-10V / With Emergency Kit

Optics

Dimensions

Parent Üçlü Teknik (1)

Product Variations

Product Code	Power (W)	Luminous Flux (LM)	CCT (K)	Optics	Dimensions (mm)	Datasheet
PRT 045 015 078S 8040 10 15 CA 20 00	78	10140	4000	15° Reflector	450x150x150
PRT 045 015 078S 8040 10 30 CA 20 01	78	10140	4000	30° Reflector	450x150x150
PRT 045 015 078S 8040 10 40 CA 20 02	78	10140	4000	40° Reflector	450x150x150
PRT 045 015 099S 8040 10 15 CA 20 00	99	13500	4000	15° Reflector	450x150x150
PRT 045 015 099S 8040 10 30 CA 20 00	99	13500	4000	30° Reflector	450x150x150
PRT 045 015 099S 8040 10 40 CA 20 00	99	13500	4000	40° Reflector	450x150x150

Download

Create fact sheet (pdf)
