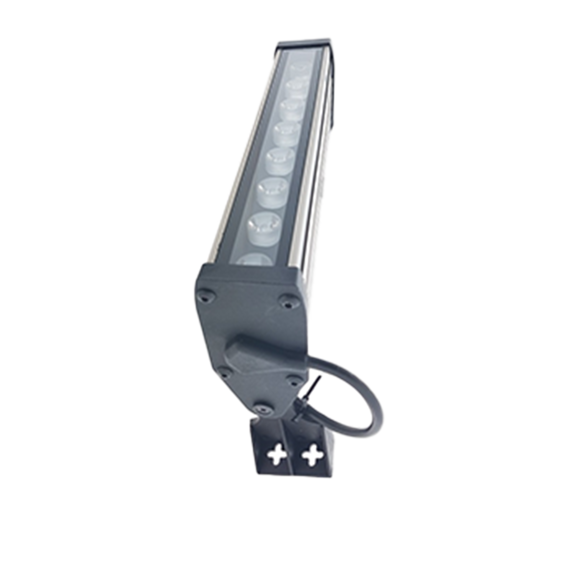

Wally
Floor Facade & Landscape Luminary
Optics
15° 30° 40° Lens & Tempered Glass
Luminous Flux
1339 lm / 2575 lm / 3708 lm / 4326 lm
Consumption Power
13 W / 25 W / 36 W / 42 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 67
IK 09
70K
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
- Luminaire Group Facade & Landscape
- Mounting Type Floor
- Luminary Color RAL 9005 - RAL 9006 - RAL 9010
- Housing Aluminum Extrusion
- Optics 15° 30° 40° Lens & Tempered Glass
- Light Source LED
- Electrical Protection Class CLASS II
- IP 67
- IK 09
- Operating Temperature -20°C / +40°C
- Luminous Flux 1339 lm / 2575 lm / 3708 lm / 4326 lm
- Consumption Power 13 W / 25 W / 36 W / 42 W
- Luminaire Efficiency 103 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| WLY 005 030 013Y 8030 10 15 LN 67 00 | 13 | 1339 | 4000 | 15° Lens | L:300 |
|
| WLY 005 030 013Y 8030 10 30 LN 67 00 | 13 | 1339 | 4000 | 30° Lens | L:300 |
|
| WLY 005 030 013Y 8030 10 40 LN 67 00 | 13 | 1339 | 4000 | 40° Lens | L:300 |
|
| WLY 005 060 025Y 8030 10 15 LN 67 00 | 25 | 2575 | 4000 | 15° Lens | L:600 |
|
| WLY 005 060 025Y 8030 10 30 LN 67 00 | 25 | 2575 | 4000 | 30° Lens | L:600 |
|
| WLY 005 060 025Y 8030 10 40 LN 67 00 | 25 | 2575 | 4000 | 40° Lens | L:600 |
|
| WLY 005 090 036S 8030 10 15 LN 67 00 | 36 | 3708 | 4000 | 15° Lens | L:900 |
|
| WLY 005 090 036S 8030 10 30 LN 67 00 | 36 | 3708 | 4000 | 30° Lens | L:900 |
|
| WLY 005 090 036S 8030 10 40 LN 67 00 | 36 | 3708 | 4000 | 40° Lens | L:900 |
|
| WLY 005 120 042Y 8030 10 15 LN 67 00 | 42 | 4326 | 4000 | 15° Lens | L:1200 |
|
| WLY 005 120 042Y 8030 10 30 LN 67 00 | 42 | 4326 | 4000 | 30° Lens | L:1200 |
|
| WLY 005 120 042Y 8030 10 40 LN 67 00 | 42 | 4326 | 4000 | 40° Lens | L:1200 |
|
