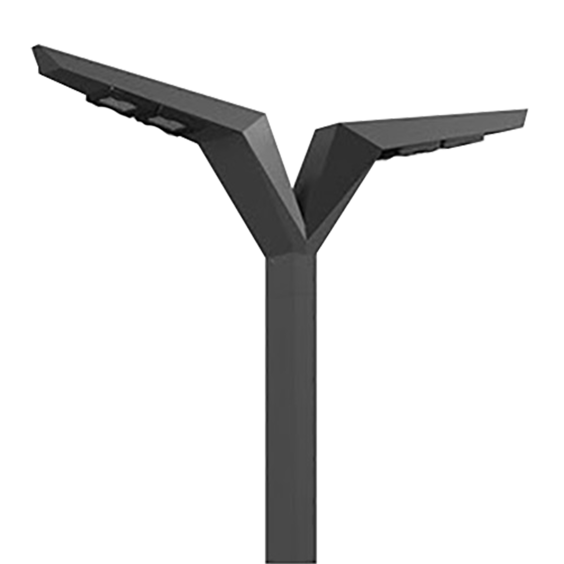

Eagle
Pole Mounted Park & Garden Luminary
Optics
PMMA Lens & Tempered Glass
Luminous Flux
3900 lm / 7800 lm / 10400 lm / 13000 lm
Consumption Power
30 W / 60 W / 80 W / 100 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 66
IK 08
70K
Colour Options
RAL 9006
RAL 9005
RAL 9010
Product Features
- Luminaire Group Park & Garden
- Mounting Type Pole Mounted
- Luminary Color RAL 9006 - RAL 9005 - RAL 9010
- Housing Aluminum Injection
- Optics PMMA Lens & Tempered Glass
- Light Source LED
- Electrical Protection Class CLASS II
- IP 66
- IK 08
- Operating Temperature -20°C / +40°C
- Luminous Flux 3900 lm / 7800 lm / 10400 lm / 13000 lm
- Consumption Power 30 W / 60 W / 80 W / 100 W
- Luminaire Efficiency 130 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V

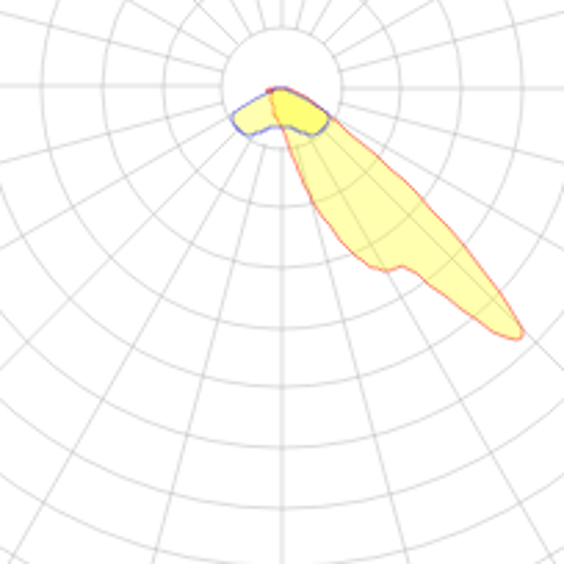

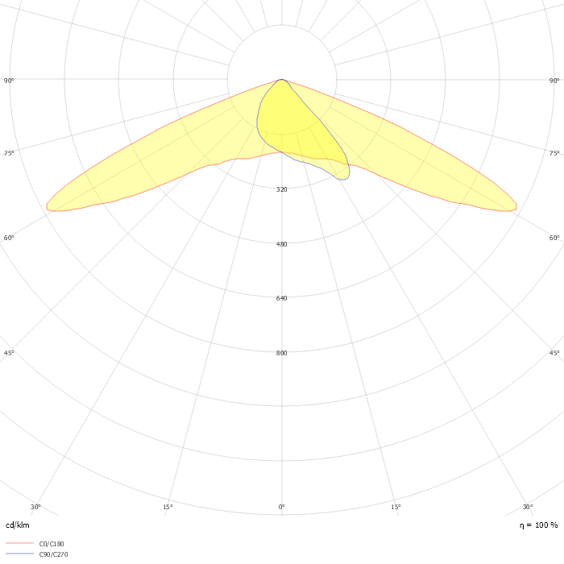

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| EAG 4000 090 030M 8040 10 AS PM 66 00 | 30 | 3900 | 4000 | AS° PMMA | 4000x900 |
|
| EAG 4000 090 060M 8040 10 AS PM 66 00 | 60 | 7800 | 4000 | AS° PMMA | 4000x900 |
|
| EAG 4000 090 080M 8040 10 AS PM 66 00 | 80 | 10400 | 4000 | AS° PMMA | 4000x900 |
|
| EAG 4000 090 100M 8040 10 AS PM 66 00 | 100 | 13000 | 4000 | AS° PMMA | 4000x900 |
|
Download
