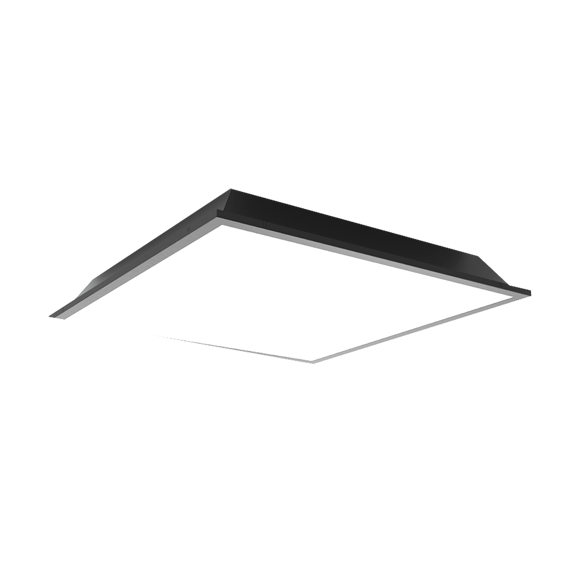

Panlite (1)

Panlite 60x60

Recessed Luminary

Optics
Opal Diffuser

Luminous Flux
1579 lm

Consumption Power
40 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor Enec Tse CB 220V 240V IP 40 IK 02 70KLED life
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
  • Luminaire Group Recessed
  • Mounting Type Recessed
  • Luminary Color RAL 9005 - RAL 9006 - RAL 9010
  • Housing DKP Sheet
  • Optics Opal Diffuser
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 40
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 1579 lm
  • Consumption Power 40 W
  • Luminaire Efficiency 125 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

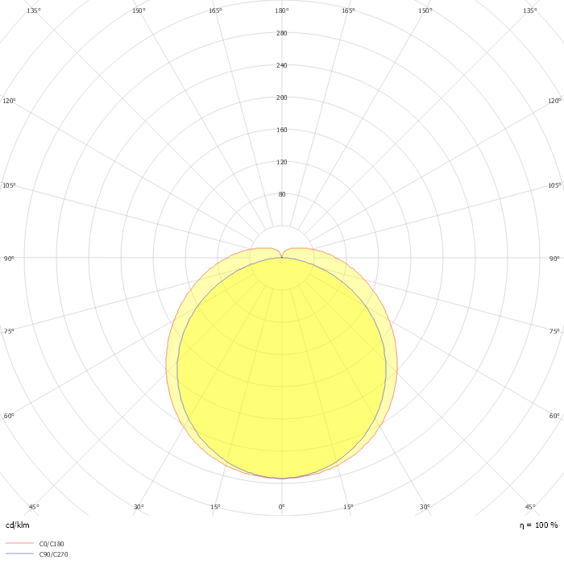

Optics
130º
Dimensions
Panlite Teknik
Product Variations
SKU Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet LDT
13503938 PNL 060 007 038A 8040 10 99 OP 40 00 40 1579 4000 120° Opal Diffuser 600x600 Datasheet LDT
