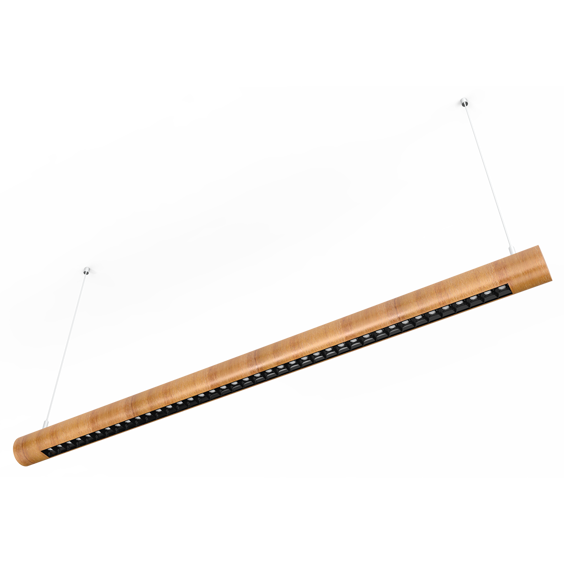

Lignum
Recessed Wood & Concrete Products Luminary
Optics
Reflector
Luminous Flux
3200 lm
Consumption Power
40 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 20
IK 02
70K
Colour Options
Product Features
- Luminaire Group Wood & Concrete Products
- Mounting Type Recessed
- Luminary Color
- Housing Wood
- Optics Reflector
- Light Source LED
- Electrical Protection Class CLASS II
- IP 20
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 3200 lm
- Consumption Power 40 W
- Luminaire Efficiency 80 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off

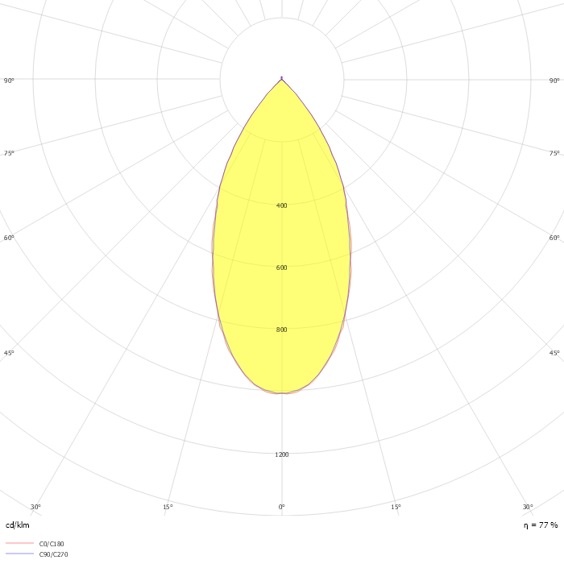

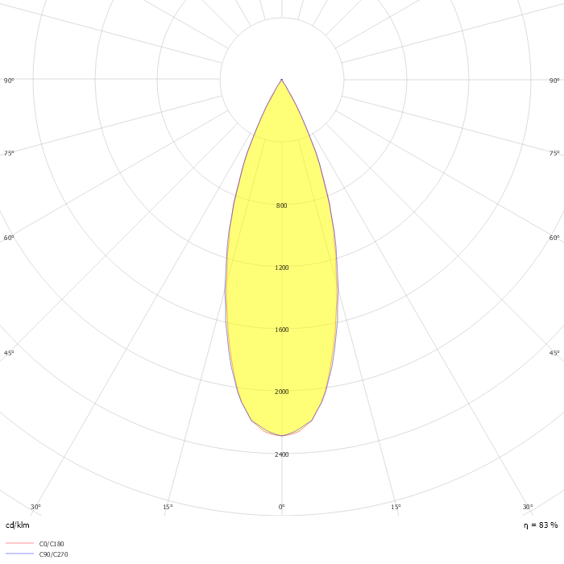

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| LİG 012 006 040P 8040 10 48 RF 20 00 | 40 | 3200 | 4000 | 48° Reflector | 1200x68 |
|
| LİG 012 006 040P 8040 10 34 RF 20 00 | 40 | 3200 | 4000 | 48° Reflector | 1200x68 |
|
