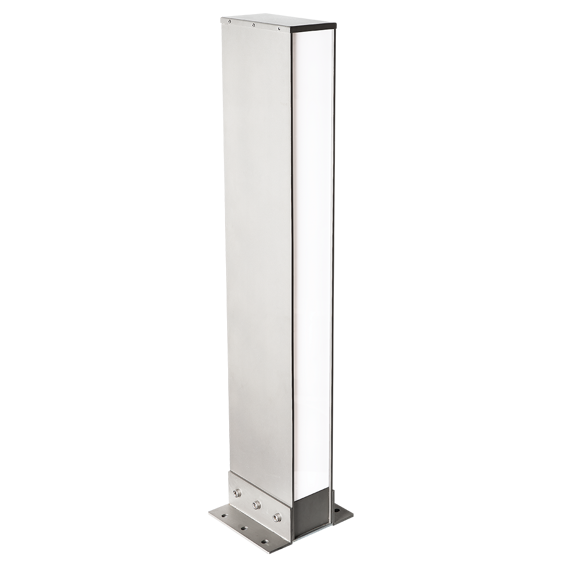

Maximus
Concrete Park & Garden Luminary
Optics
Acrylic Diffuser
Luminous Flux
2540 lm / 5080 lm / 7620 lm
Consumption Power
35 W / 70 W / 105 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 65
IK 08
70K
Colour Options
RAL 9006
RAL 9005
RAL 9010
Product Features
- Luminaire Group Park & Garden
- Mounting Type Concrete
- Luminary Color RAL 9006 - RAL 9005 - RAL 9010
- Housing AlAluminum Extrusion
- Optics Acrylic Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 65
- IK 08
- Operating Temperature -20°C / +40°C
- Luminous Flux 2540 lm / 5080 lm / 7620 lm
- Consumption Power 35 W / 70 W / 105 W
- Luminaire Efficiency 105 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V
Dimensions
Product Variations
| SKU | Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|---|
| 74000003 | MAX 010 100 035Y 8030 10 99 OP 65 00 | 35 | 2540 | 4000 | 120° Opal Diffuser | 1000x200x105 |
|
| 74000009 | MAX 010 200 070Y 8030 10 99 OP 65 00 | 70 | 5080 | 4000 | 120° Opal Diffuser | 2000x200x105 |
|
| MAX 010 200 070Y 8030 10 99 OP 65 00 (1) | 105 | 7620 | 4000 | 120° Opal Diffuser | 3000x200x105 |
|
